iBwave Private Networks

Select your plan for

iBwave Private Networks

1-Month Subscription (Wi‑Fi)

$ 513.00 USD

Monthly Billing Cycle

Included
1 User license
10 GB Cloud storage
iBwave Viewer ⁽³⁾
1-Month AMS support ⁽²⁾

BEST VALUE

12-Month Subscription (Wi‑Fi)

$ 3,078.00 USD

Yearly Billing Cycle

Included
1 User license
10 GB Cloud storage
iBwave Viewer ⁽³⁾
12-Month AMS support ⁽²⁾

1-Month Subscription (Private LTE/5G and Wi‑Fi)

$ 2,230.00 USD

Monthly Billing Cycle

Included
1 User license
10 GB Cloud storage
iBwave Viewer ⁽³⁾
1-Month AMS support ⁽²⁾

BEST VALUE

12-Month Subscription (Private LTE/5G and Wi‑Fi)

$ 13,380.00 USD

Yearly Billing Cycle

Included
1 User license
10 GB Cloud storage
iBwave Viewer ⁽³⁾
12-Month AMS support ⁽²⁾

(1) Subscriptions need to be renewed before end of the subscription term in order to maintain software upgrades.

(2) Subscriptions need to be renewed before end of the subscription term in order to maintain access to the storage space and software upgrades.

(3) iBwave Viewer is used to open .ibw files in read-only mode

DESCRIPTION
FEATURES
REQUIREMENTS

A single solution to design Private LTE & 5G and Wi‑Fi networks you can rely on.

With cloud-connectivity, seamless integration to iBwave Mobile Survey for surveys, advanced 3D modeling, a powerful prediction engine focused on delivering design accuracy even in complex venues, and a large database of vendor-modeled network parts, iBwave Private Networks is the simplest and most reliable solution to plan, design and deliver high-performance Private LTE & 5G and Wi‑Fi networks.

This software comes with either Wi‑Fi only solution or as a Private LTE & 5G and Wi‑Fi solution to give you complete flexibility.

iBwave Private Networks Software Features

Software features

Wireless Technologies

Wi‑Fi (802.11 a/b/g/n/ac/ax)

Free Active survey server

Simultaneous Active and Passive walk test

Supports multi-adapter Passive survey

Network Design

Design Plan for indoor Wi‑Fi system design (building and/or floors)

Centralized database with vendor-modeled network parts: APs, cables, switches, routers, controllers, racks, cabinets and more

Smart Antenna Contouring for live signal strength predictions during AP placement

Cable tray modeling

Cable routing

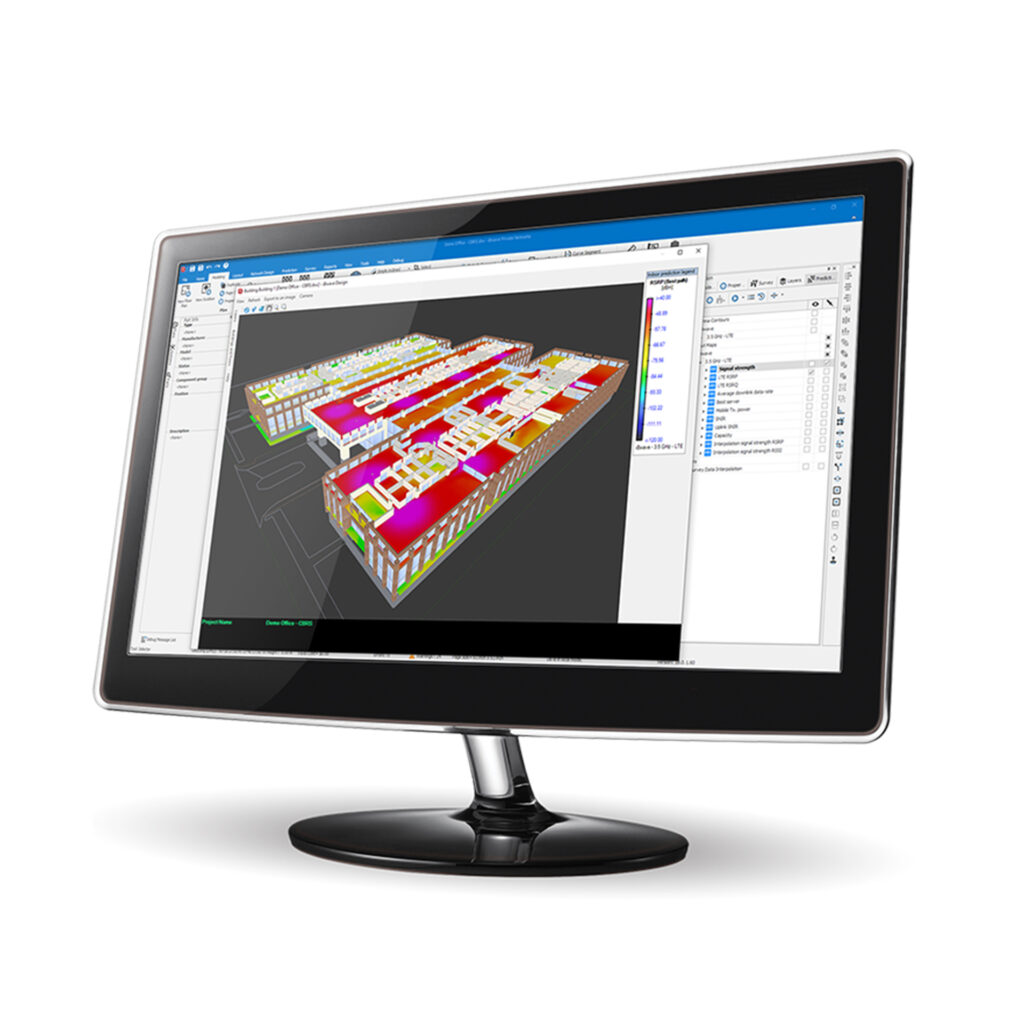

Advanced 3D prediction visualizations

Multi-Radio AP support

Network validation and error checking

Zigbee support

Mist integration

Automation

Automatic Inclined Surfaces

Automatic access point placement

Automatic channel assignment

Automatic Design Plan organizer

Automatic cable length measurements

Building Modeling

Create multiple buildings and multi-layered floor plans

Surface modeling with the ability to stop walls at an incline

Import floor plans and walls from .dwg, .dxf, .jpeg, .bmp, .tiff, .gif or .pdf files

Draw walls and surfaces (including diagonally and inclined), assign materials or create your own

Curved wall design for stadiums

Advanced 3D Viewer to display buildings and floors

Show building location in Google Maps or Bing Maps

Export building to Google Earth

Propagation

Simultaneous multi-band / technology propagation and capacity 3D prediction analysis

Variable Path Loss Exponent, COST 231 MultiWall or Fast Ray Tracing propagation models

Probe to display multi-system prediction results

Compliance results and report based on user defined criteria

Prediction model and material calibration from survey data

Output Maps

Signal strength (RSSI), Maximum Achievable Data Rate (MADR) and Signal to Noise Ratio (SNR)

Best AP and Best Channel

Co-Channel Interference (CCI), AP count and Overlap zone

Capacity and Average Downlink Data Rate

Project Documentation

Use drawing tools to add lines, shapes, text and images

Create picture plans and photo mock-ups

Create annotations (text, audio, picture, video)

Create project revisions

Protect project file with password

Export project to .dxf format and all annotations to zip file

Print project documentation

Reports

Annotations, Output maps, RF Survey reports

Equipment list and Cost Details report

Access Points, Cable Routing and Cross-Reference reports

Prediction vs. Measured report

Compliance Report

Free report viewer for project stakeholders

Tools

Net scan

Frequency calculator

Power converter

Intermodulation calculator

iBwave Private Networks Technical Specifications

SOFTWARE REQUIREMENTS

HARDWARE REQUIREMENTS

1. INTRODUCTION

Smooth and rapid operation of iBwave Private Networks is highly dependent on Boost Clock Speed of the processor, the number of cores, and the amount of RAM in the system. For highly complex designs involving a large surface area, high number of transmitters, and number of wireless services, the Recommended specifications listed in this document are meant to provide the best experience for users attempting to build accurate designs through rapid iterations of designing and predicting the system.

2. RECOMMENDED SPECIFICATIONS

The following table describes the minimum and recommended specifications of iBwave Private Networks. A Recommended system is one that can reliably execute complex designs over large venues with numerous transmitters and large square footage.

Recommended Specifications will offer the highest performance while offering similar results in terms of execution time for a single user.

	Desktop Minimum	Recommended
	Desktop Minimum	Laptop (Mobile CPUs)	Desktop	Cloud
Processor	Intel Core i5 AMD Ryzen 5	Intel Core i7 AMD Ryzen 7	Intel Core i9 AMD Ryzen 9	Intel XEON Platinum AMD EPYC 9xx4
CPU Clock Speed	4+ GHz Boost Clock	4+ GHz Boost Clock	5+ GHz Boost Clock	3.40 GHz
Core	6+ Performance Cores	6+ Performance Cores	8+ Performance Cores	128 Cores
Operating System	Win 10 Pro, 64 bits, x64- base processor	Win 10 Pro, 64 bits, x64- base processor	Win 11 Pro, 64 bits, x64- base processor	Windows Server 2022
RAM	16 GB DDR4/DDR5	16 GB DDR4/DDR5	128 GB DDR5	256 GB
Storage	1TB NVME	1TB NVME	2TB NVME	2TB+
Performance (Stadium – Signal Strength)	2h30m	3h24m	1h13m	1h01m

2.1 GPU-ACCELERATED SPECIFICATIONS

When coupled with GPU acceleration using supported CUDA® operations on Nvidia® devices, there is a marked reduction in prediction times on these systems. The base computation for every prediction map is the creation of Signal Strength matrices describing the power at each point of a prediction map. Utilizing the GPU for these computations can result in further performance gains relative to the system used.

Note: CUDA GPU Acceleration is available starting in Release 22 of iBwave Private Networks for all packages of iBwave Private Networks.

	Laptop	Desktop	Cloud
System	As Recommended	As Recommended	As Recommended
NVIDIA Video Card	RTX 4070 (Mobile)	RTX 4090	A100
GPU-Accelerated Prediction Time	1h43m	28m	29m

CERTIFIED NVIDIA® DEVICES:

Devices that comply with a minimum of CUDA® Compute Level of 6.1 will be capable of running GPU-accelerated predictions (see the following table - https://developer.nvidia.com/cuda-gpus). Of these devices only the following devices have been internally tested for use with CUDA® Accelerated predictions:

Wi-Fi ADAPTERS

All Wi-Fi adapters are supported

Advanced Support
The following adapters include support for channel filtering and custom scan rate:

* iBwave Private Networks does not allow the usage of multiple simultaneous Terminal Server sessions.

* iBwave Private Networks will not run under multiple simultaneous Terminal Servers.

Frequently Asked Questions

If you cannot find the answer below, please use the contact form or send us an email.

WHAT HAPPENS AFTER MY PURCHASE

For Paid Orders

We will start working on your request as soon as the order comes in, and we’ll get back to you by email within 2 business days with everything you need to tackle your project. During this time, if you have any questions, please feel free to contact our support team.

For Purchase Orders

1. Once the purchase order comes in, we will get back to you to proceed with your preferred method of payment. And in that meantime, if you have any questions, please feel free to contact our sale team.

2. Once your payment has been processed and approved, we will start working on your request, and we’ll get back to you by email within 2 business days with everything you need to tackle your project. During this time, if you have any questions, please feel free to contact our support team.

ABOUT THE SUBSCRIPTION LICENSE

What is included with the subscription license?

Your subscription license includes Annual Maintenance & Support (AMS) for the duration of the subscription. Subscriptions need to be renewed before end of the subscription term in order to maintain software upgrades.

Where can I download my license?

You can download your license in the Customer Portal at my.ibwave.com. You will need to log in or register to create your profile if you are a first time user.

Then go to the Software Downloads section (under the Software & Licenses tab) and download the latest app/software.

How to transfer my license?

You can transfer your license in the Customer Portal at my.ibwave.com. You will need to log in or register to create your profile if you are a first time user.

Then go to the License Transfer section (under the Software & Licenses tab) to transfer your license.

ANNUAL MAINTENANCE & SUPPORT

Get a wide range of support services and resources aimed at ensuring you get the most out of your investment.

24/5 Access to Support
License Transfers
Major Software Upgrades
Components Database
